| 加工定制 | 是 |
|---|---|
| 类型 | 其他 |
| 用途 | 食品 |
| 品牌 | SHARE |
| 型号 | ZF12T-R2W |

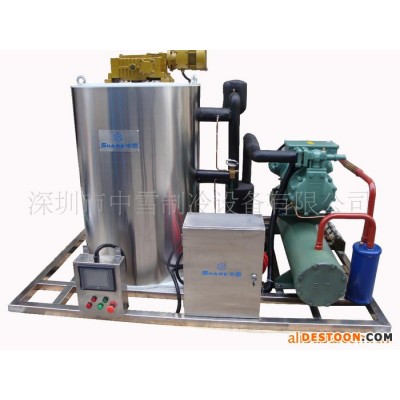

SHARE制冰系统针对中小型食品加工厂,水产加工厂,大型家禽屠宰加工厂及中小型化工厂的用冰过程进行研发生产。产品设计高度人性化，采用的微电脑控制系统可以实现全自动化的工程管理。可以针对工厂的其他配套设备提供现场安装。
SHAREice-making system is designed special for small food-processing plants, fish processing plants, large-scale poultry slaughter and processing plants with small and medium-sized chemical process R & D and production of ice. Microcomputer control system. We could provide on-site installation of equipment.
选型说明 Instruction
1、实际用冰量会随着水温、环境温度的变化而变化。
The actual ice output will be affected by water and environment’s temperature.
2、标准电源为3N-380V/50HZ动力电。
Standard power supply: 3N/380V/50HZ industrial power.
3、水源为淡水，可以用普通自来水或地下水。
Freshwater
4、请客户尽量提供安装现场图纸。
Please provide site drawing if possible.
5、机器生产的冰型为片冰，厚度：1.8-2.2 mm
Ice’s thickness: 1.8~2.2mm
6、标准工况：环境温度25℃，水温为18-20℃。
Standard working condition: 25Cambient temperature;18Cwater inlet temperature.
7、蒸发温度：-20℃；冷凝温度：40℃；制冷剂：R404A/R22
Evaporating temp.: -20C; Condensing temp.: 40C; Refrigerant: R404/ R22
技术参数Technical data
型号Model | ZF5T- R2W | ZF8T- R2W | ZF10T- R2W | ZF12T-R2W |
日产量Daily Output | 5T | 8T | 10T | 12T |
总功率General power | 18kW | 30．7kW | 34kw | 39.6kW |
制冷量Refrigeration capacity | 28000 | 44700 | 56000 | 67000 |
减速机功Reducer Power | 0.37kW | 0.75kW | 0.75kW | 0.75kW |
冷却方式Cooling Mode | 水冷/风冷air cooling / water cooling | 水冷/风冷air cooling / water cooling | 水冷/风冷air cooling / water cooling | 水冷/风冷air cooling / water cooling |
进/排水管径water in/drain pipe | 5/8" | 5/8" | 5/8" | 5/8" |
机组尺寸Dimension | 1650x1555X1580 | 2300x1900X1850 | 2500x2000X2050 | 2500x2000X2150 |
重 量Weight | 1050 | 1280 | 1310 | 1530 |
备注：上述参数随着技术革新将有所变化，恕不另行通知。
Note: All the parameter will be changed subject to technical innovation without further notice.
